Actisense NGW-1 NMEA 2000-0183

The Actisense NGW-1 is a bi-directional Gateway allowing NMEA 2000 and NMEA 0183 devices to communicate with each other. With the ability to use multiple NGW-1 units it is possible to multiplex numerous NMEA 0183 devices making it easy to convert a boats old and new networks.

The NGW-1 comes in three models:

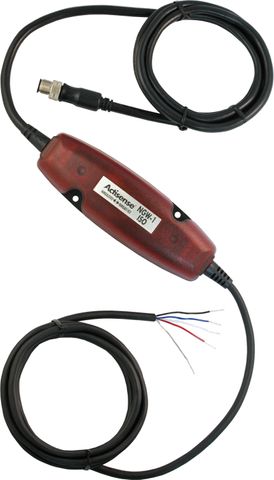

  • NGW-1-ISO comes terminated with a DeviceNet connector

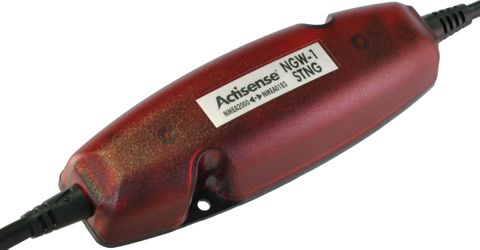

  • NGW-1-STNG comes terminated with a  SeaTalkng connector.
  • NGW-1-ISO-AIS has the additional ability to convert NMEA 0183 AIS data to NMEA2000.

Features:

  • Fully isolated NMEA 0183 incorporating ISO-Drive™ technology
  • Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
  • Supports Fast Heading at 10Hz
  • Up to 230,400 baud data transfer rate
  • Integrated 1.5m drop cable
  • Diagnostic receive LEDs

Benefits:

  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data

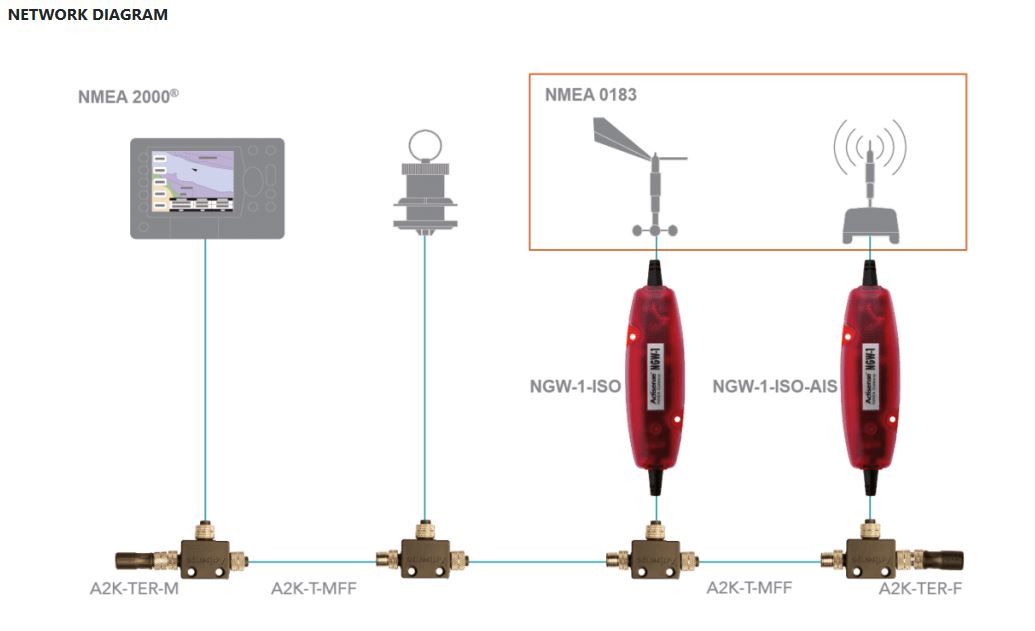

  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit



Code Image Product Details Stock Price Quantity Enquire
NGW-1-ISO-AIS
Actisense NGW-1 NMEA 2000-0183
NGW-1-ISO-AIS
NMEA 2000 TO 0183 Gateway with AIS
Stock Level:
Low Stock
Stock Level:
Low Stock
$442.63 Incl. GST
NGW-1-STNG
Actisense NGW-1 NMEA 2000-0183
NGW-1-STNG
NMEA 2000 TO 0183 Gateway - SeaTalking Connector
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$494.53 Incl. GST
NGW-1-ISO
Actisense NGW-1 NMEA 2000-0183
NGW-1-ISO
NMEA 2000 TO 0183 Gateway - Devicenet Connector
Stock Level:
Available
Stock Level:
Available
$432.75 Incl. GST
