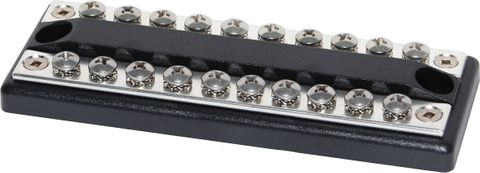

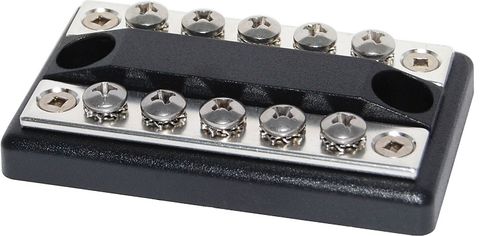

Blue Sea 100A Common Dual Busbar
Combines negative and positive buses on one block. 5 or 10 screw terminals.

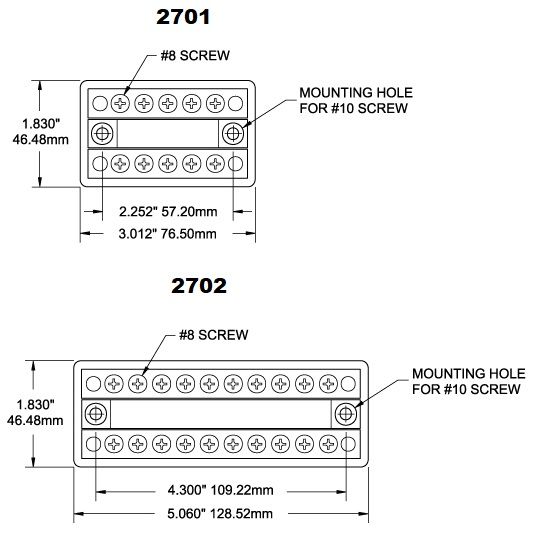

| 2701 | 2702 | |
| Maximum Voltage | 300VAC 48VDC | 300VAC 48VDC |
| Number of Screw Terminals | 5 per bus | 10 per bus |
| Terminal Type | #8-32 Screw | #8-32 Screw |
| Continuous Rating | 100A | 100A |
| Base Material | UL 94-V0 Rates, Glass Reinforced Thermoplastics | UL94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin Plated Copper CDA 110/UNS11000 | Tin Plated Copper CDA 110/UNS11000 |
| Screw Terminal Torque | 15in-lb (1.69 Nm) | 15in-lb (1.69 Nm) |
| Height | 5/8in (15.88mm) | 5/8in (15.88mm) |
| Weight | 0.21lb (0.1kg) | 0.30lb (0.14kg) |
Related Products
-
-

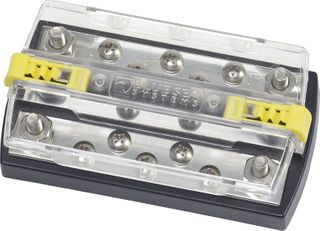

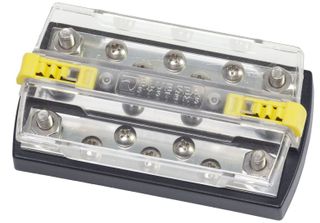

2 x 1/4 (M6) Studs, 10 x #8 (M4) Screws, With Cover2300-BSSRRP:$50.00 Incl. GST
-
