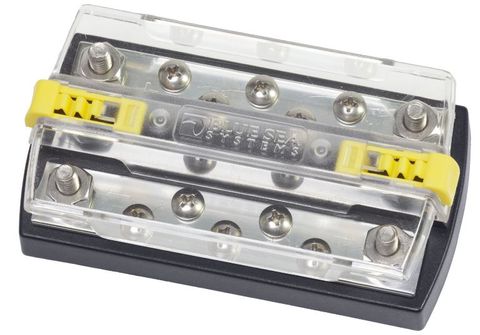

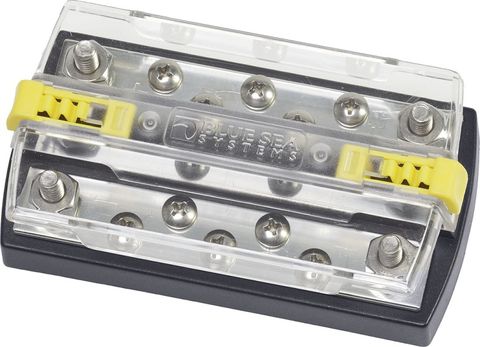

Blue Sea 150A Common Dual Busbar With Cover
A compact termination point for both the positive and negative buses on one block, including a clear polycarbonate cover. Available with 1/4” or 5/16” stud with 5 screws per bus.
| 2722 | 2723 | |
| Maximum Voltage | 300V AC 48V DC | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus | 5 per bus |
| Number of Terminal Studs | 2 per bus | 2 per bus |
| Terminal Type | #10-32 Screw 1/4" Stud | #10-32 Screw 1/4" Stud |
| Continuous Rating | 130A AC 150A DC | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate | Clear Polycarbonate |
| Mounting Screw | #10 (M5) | #10 (M5) |
| Screw Terminal Torque | 18in-lb (2.03 Nm) | 18in-lb (2.03 Nm) |
| Stud Torque | 60in-lb (6.78 Nm) | 120in-lb (13.56 Nm) |
| Weight | 0.66lb (0.3kg) | 0.61lb (0.28kg) |
