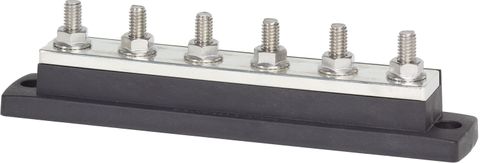

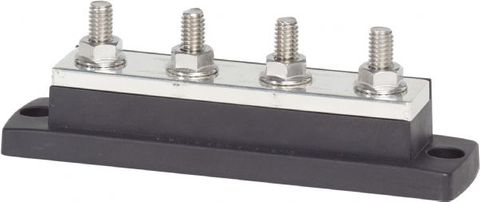

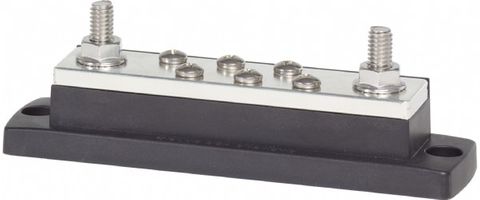

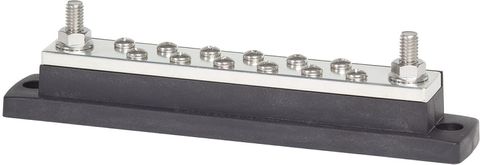

Blue Sea 250A MaxiBus BusBars
The industry standard for positive or negative distribution, or the distribution of AC ground circuits.
| 2105 | 2126 | 2127 | 2128 | ||
| Maximum Voltage | 300V AC 48V DC | 300V AC 48V DC | 300V AC 48V DC | 300V AC 48V DC | |
| Number of Screw Terminals | 12 | 6 | |||
| Number of Terminal Studs | 2 | 6 | 4 | 2 | |
| Terminal Type | #10-24 Screw 5/16"-18 Stud | 5/16"-18 Stud | 5/16"-18 Stud | #10-24 Screw 5/16"-18 Stud | |
| Continuous Rating | 250A | 250A | 250A | 250A | |
| Base Material | UL-94-V0 Rated, Glass Reinforced Thermoplastic | UL-94-V0 Rated, Glass Reinforced Thermoplastic | UL-94-V0 Rated, Glass Reinforced Thermoplastic | UL-94-V0 Rated, Glass Reinforced Thermoplastic | |
| Bus Material | Tin-Plated Copper CDA 110/11000 | Tin-Plated Copper CDA 110/11000 | Tin-Plated Copper CDA 110/11000 | Tin-Plated Copper CDA 110/11000 | |
| Recommended Screw Torque | 23in-lb (2.6 Nm) | 23in-lb (2.6 Nm) | |||
| Recommended Stud Torque | 132in-lb (14.91 Nm) | 132in-lb (14.91 Nm) | 132in-lb (14.91 Nm) | 132in-lb (14.91 Nm) | |
| Weight | 0.80lb (0.36kg) | 0.80lb (0.36kg) | 0.80lb (0.36kg) | 0.80lb (0.36kg) |
