Raymarine HV-100 Transom Mount 7-in-1 Transducer with HyperVision

Raymarine HV-100 Transom Mount 7-in-1 Transducer with HyperVision

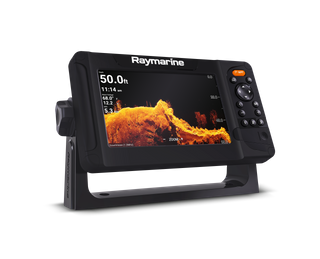

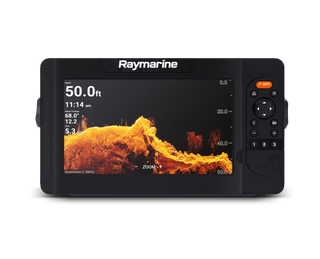

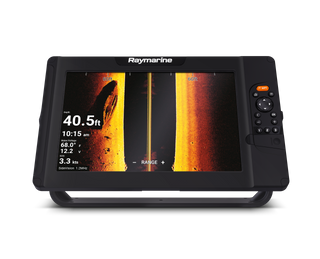

Pair the HV-100 Transom Mount transducer with your Raymarine Element HV for excellent underwater images and water temperature. Using multiple CHIRP frequencies based around 200kHz/350kHz and 1.2Mhz this transducer will provide detail to 900' below your boat!

Features

  • 1.2MHz HyperVision: Provides super high resolution up to 125' in downvision and sidevision modes.
  • 350kHz Standard Imaging: Provides great resolution and range up to 600' down and 300' side
  • High CHIRP Conical Sonar: Marks fish and track bottom at speed to 900' below your boat
  • HyperVision Overlay: Overlay on RealVision 3D for high level of resolution and positional awareness

Code Image Product Details Stock RRP Download
A80603

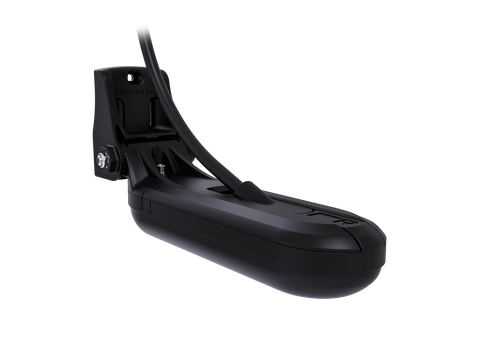

Raymarine HV-100 Transom Mount 7-in-1 Transducer with HyperVision
HV-100 Transom Mount Transducer
Stock Level:
Available
$559.00 Incl. GST

Power

  • 1.2 MHz (Hyper) = 1000 W
  • 350 kHz (Standard) = 700 W
  • 200 kHz (Conical high CHIRP sonar) = 100 W

Frequencies

  • 1.2 MHz CHIRP
  • 350 kHz CHIRP
  • 200 kHz CHIRP

Channels

  • Conical high CHIRP sonar
  • RealVision™ 3D (Hyper)
  • RealVision™ 3D (Standard)
  • SideVision™ (Hyper)
  • SideVision™ (Standard)
  • DownVision™ (Hyper)
  • DownVision™ (Standard)

200 kHz range

  • Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)

350 kHz (Standard) range

  • RealVision™ 3D = 0.6 M (2 ft) to 91 m (300 ft)
  • SideVision™ = 0.6 M (2 ft) to 91 m (300 ft) each side
  • DownVision™ = 0.6 M (2 ft) to 183 m (600 ft)

1.2 MHz (Hyper) range

  • RealVision™ 3D = 0.6 M (2 ft) to 38 m (125 ft)
  • SideVision™ = 0.6 M (2 ft) to 38 m (125 ft) each side
  • DownVision™ = 0.6 M (2 ft) to 38 m (125 ft)
