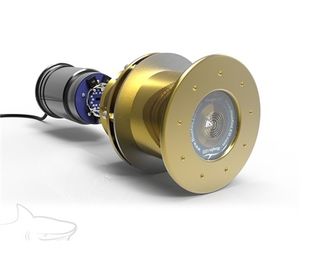

Bluefin Elite Series SY-48 IFM
Bluefin LED Super Yacht Elite Interchangeable Series Underwater light.

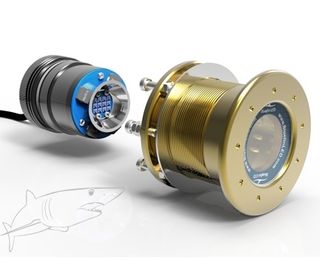

The Elite Series SY48 IFM produces 22,000 fixture lumens. Almost unlimited mounting options thanks to its ultra-low profile bezel. Thru Hull mounting offers secure fixing with the additional benefit of a removable LED cartridge that can be serviced inside the hull.
RGBW colour change model can be controlled via a dedicated touch[ad controller/ITS system or via a third part device such as i-phone, android or tablet.
A Delrin Isolation Sleeve must be used on Steel, Aluminium or Carbon composite hulls. Stainless Steel and Aluminium weld in models with 0-20 degree or 0-45 degree angles are available (26,000 Fixture Lumens)
Mounting Type: Thru-Hull Interchangeable
Hole cut out size: 101mm
Fixture Lumens: 22,000
Max Wattage: 210W
Typical Life Expectancy: 50,000 hours
Voltage: 110V / 220V
Power Draw: 110V 1.8A / 220V 1A
Protection: Over / Under Voltage. Over Current. Reverse Polarity protection. Thermal protection. MLST Sealing technology.
Fixture Profile: 4mm
Fixture Diameter: 140mm
Fixture Length: 170mm
Lens Type: Optical grade 8mm Borosilicate glass with Guard X coating
Fixture Material: AB2 Bronze with Aluminium light engine cartridge
Beam Angle: 65 Degree
Warranty: 2 Years
Type Approval: RINA IEC 60529
Available Colours: Diamond White, Topaz Blue & RGBW
Features: (RGBW) Endless colours, cycling, strobe, dimmer or sound to light
Suitable Use: Below the water-line only
Spacing: 1.2m
Driver Type: External IP67 Plug and play remote box with DMX/WIFI control. Must purchase the WIFI/DMX Controller for functions.
Weight: 5.2kg
Attached cable length: 2m Plug & play
