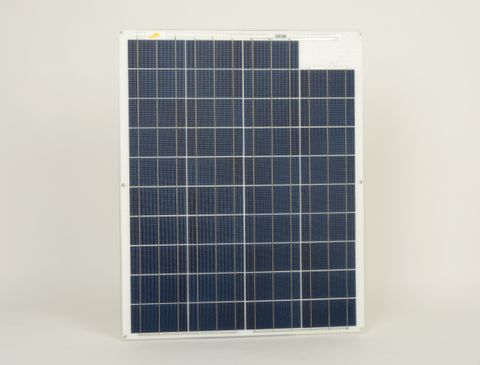

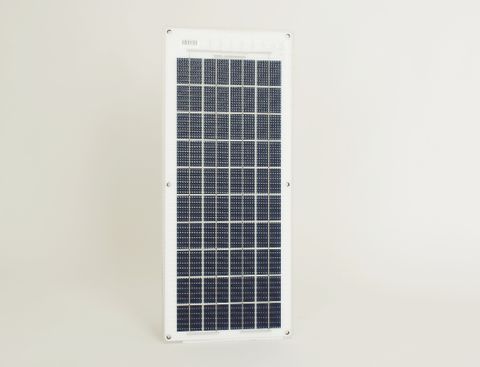

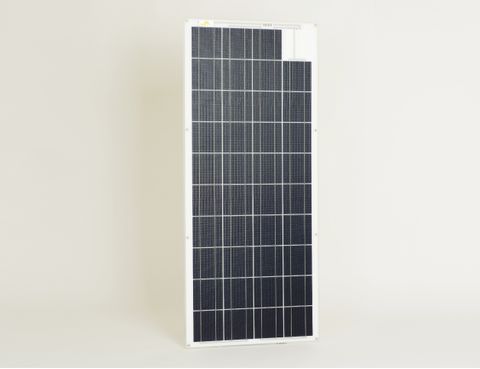

Sunware Semi Flexible Solar Panel - Outlet on Back
Sunware series-40 semi-flexible solar panels are flat, light and powerful.
The multicrystalline high-performance solar cells are protected in an EVA laminate and ETFE coatings against weathering. Even in diffused light conditions or even in winter, the modules produce a high charging current.
The modules of the series-40 have a rear cable outlet. It should be noted that for the junction box on the back of the module, a recess in the substrate must be present. Ideally, the modules should be bonded to the substrate, so that the front side remains completely flat. If the modules should be screwed, inside the package are white screw rosettes for countersunk screws. This prevents a damage to the laminate by the screw head.
The modules are designed for the harsh marine and salt water use. The cable outlet on the back side is completely sealed and 100% saltwater proof. By hermetic encapsulation cells and carrier plate are themselves well protected against the aggressive saltwater.
Sunware Semi Flexible Solar Panel - Outlet on Back (Manual)

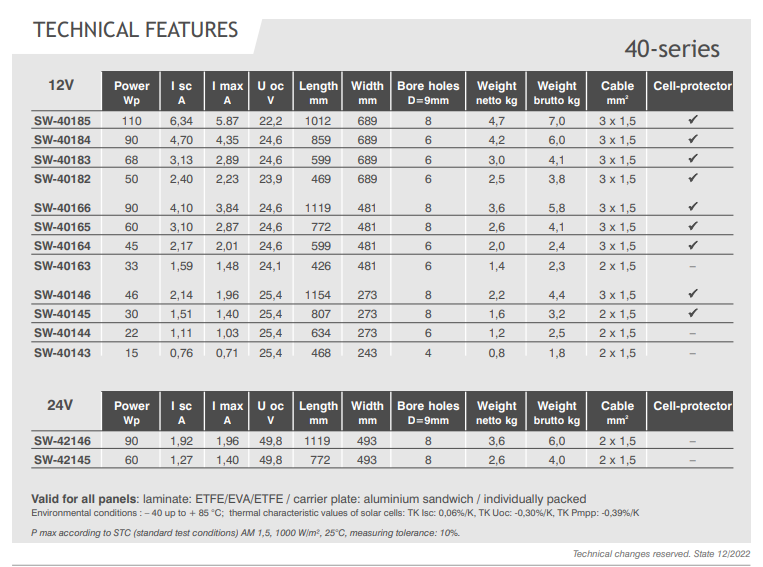

Sunware Semi Flexible Solar Panel - Outlet on Back (Specifications & Dimensions)
| Code | Image | Product Details | Stock | Price | Quantity | Enquire |
|---|---|---|---|---|---|---|
|
60234143
|
|
60234143
SW-40143, 15W 12V, 423 X 468MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$672.00
|
|
|
|
60234144
|
|
60234144
SW-40144, 22W 12V, 273 X 634 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$768.00
|
|
|
|
60234145
|
|
60234145
SW-40145, 30W 12V, 273 X 807 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$903.00
|
|
|
|
60234146
|
|
60234146
SW-40146, 46W 12V, 273 X 1154 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$1,021.00
|
|
|
|
60234163
|
|
60234163
SW-40163, 33W 12V, 481 X 426 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$957.00
|
|
|
|
60234164
|
|
60234164
SW-40164, 45W 12V, 599 X 481 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$1,139.00
|
|
|
|
60234165
|
|
60234165
SW-40165, 60W 12V, 772 X 481 MM
Stock Level:
Low Stock
|
Stock Level:
Low Stock
|
$1,510.00
|
|
|
|
60234166
|
|
60234166
SW-40166, 90W 12V, 1119 X 481 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$1,784.00
|
|
|
|
60234185
|
|
60234185
SW-40185, 120W 12V, 1012 X 689 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$2,032.00
|
|
|
|
60234182
|
|
60234182
SW 40182, 50 Wp 12V 469 x 689 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$1,111.00
|
|
|
|
60234184
|
|
60234184
SW 40184, 90 Wp 12V 859 x 689 MM
Stock Level:
Pre-Order, Stock Incoming
|
Stock Level:
Pre-Order, Stock Incoming
|
$1,914.00
|
|
Related Products
-

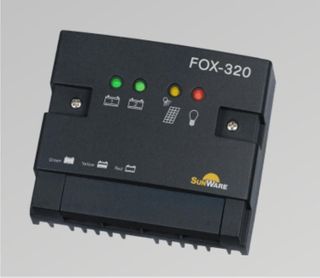

X20, 12/24V, 20A, Dual Battery System13800320RRP Was: $275.00
-
-
