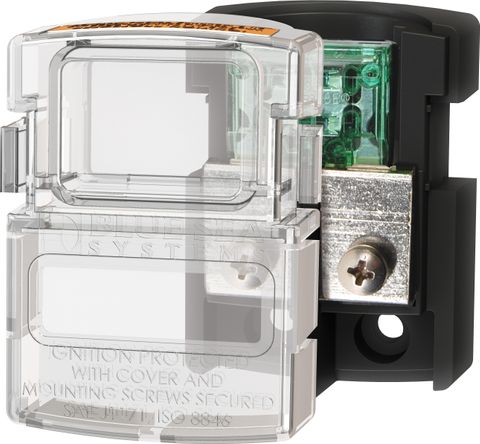

Blue Sea Maxi Blade Fuse Block

The Blue Sea Maxi fuse block comes with a snap on cover which insulates all conductive parts and they are ignition protected. The cover has breakouts which allow wires to connect from the sides or the bottom of the fuse block. Terminal screws in the block compress the fuse blades for low resistance connections. The cover accepts Blue Sea large format labels. Suits up to 80A Maxi fuses. Labels and fuses are sold separately

Code Image Product Details Stock Price Quantity Enquire
5006100
Blue Sea Maxi Blade Fuse Block
5006100
80A
Stock Level:
Available
Stock Level:
Available
$76.18 Incl. GST
5006100B
Blue Sea Maxi Blade Fuse Block
5006100B
Ignition protected - Unpackaged
Stock Level:
Available
Stock Level:
Available
$76.18 Incl. GST

Maximum Amperage

80A

Maximum Voltage

32V DC

Mounting

#10 Screws

Screw Terminal Torque

25 in-lb (2.82 Nm)

Wire Size

14 - 4 AWG

Weight

0.25lb (0.11 kg)
