Spinlock XTS Clutches, Suits 8-14mm Lines

Spinlock XTS Clutch, mid to higher load rope holding with reliable all-round performance. Specified as standard on production yachts worldwide and the choice of racing yachts inshore and offshore.

Features

  • Extruded alloy handle with soft end grip
  • Secure handle locking in open and closed position
  • Easy access to fasteners
  • Handle labels supplied
  • Ceramic coated cam and base available for consistent holding and performance with modern performance lines
  • Side mount version available
  • Lock Open version available in 8-14mm single (when the lock is engaged, the line is able to run freely in both directions until normal clutch function is required)

Code Image Product Details Stock Price Quantity Enquire
XTS0814-1
Spinlock XTS Clutches, Suits 8-14mm Lines
XTS0814-1
Line Ø 8-14mm, Single Clutch, Loads up to 1000kg
Stock Level:
Available
Stock Level:
Available
$278.00 Incl. GST
Enquire
XTS0814-2
Spinlock XTS Clutches, Suits 8-14mm Lines
XTS0814-2

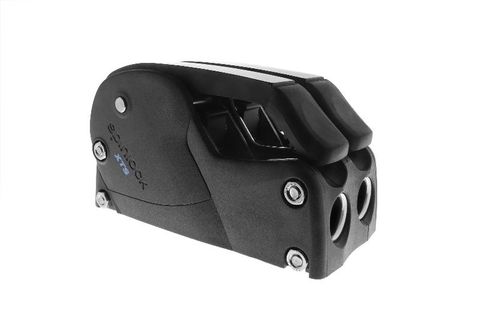

Line Ø 8-14mm, Double Clutch, Loads up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$520.00 Incl. GST
Enquire
XTS0814-3
Spinlock XTS Clutches, Suits 8-14mm Lines
XTS0814-3

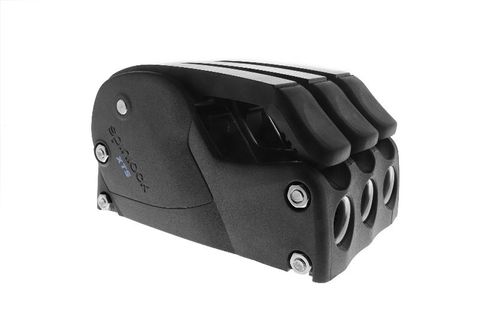

Line Ø 8-14mm, Triple Clutch, Loads up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$749.00 Incl. GST
Enquire
XTS0814-4
Spinlock XTS Clutches, Suits 8-14mm Lines
XTS0814-4

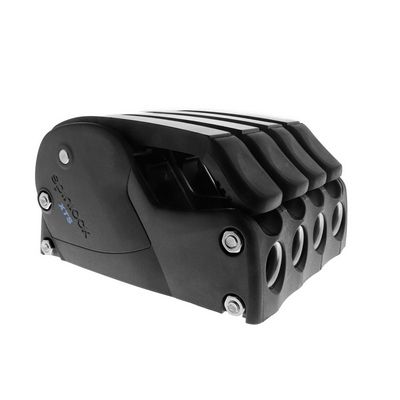

Line Ø 8-14mm, Quad Clutch, Loads up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$1,014.00 Incl. GST
Enquire
XTS0814-HP
Spinlock XTS Clutches, Suits 8-14mm Lines
XTS0814-HP

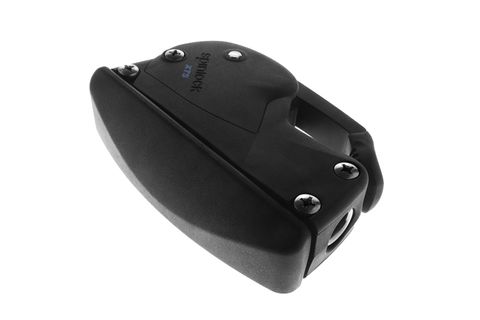

Line Ø 8-14mm, Side Mount Port, Loads up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$366.00 Incl. GST
Enquire
XTS0814-HS
Spinlock XTS Clutches, Suits 8-14mm Lines
XTS0814-HS

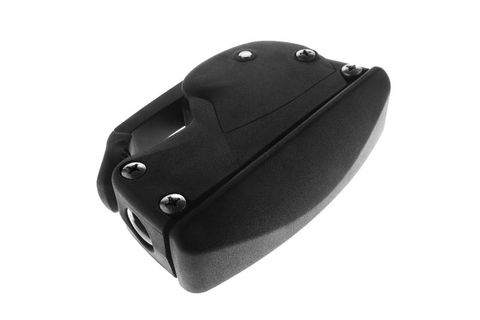

Line Ø 8-14mm, Side Mount Starboard, Loads up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$366.00 Incl. GST
Enquire
Where to Buy
Where to Buy

XTS0610

Lines: 6mm - 10mm (1/4" - 3/8")
Loads up to 1000kg (2200lbs)

XTS0814

Lines: 8mm - 14mm (5/16" - 9/16")
Loads up to 1000kg (2200lbs)

XTS0610 - Small diameter, high load

For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line. To upgrade from XTS0814, fit CAM-0610

Side Mounting

Side mounting is usually the neatest solution for spars, side decks and coamings

Endless Line XTS/M

Solves the problem of loading a continuous furling line

These clutches are supplied as kits with open bullseyes to be assembled directly onto the line

Lock Open Cam XTS/L

Cam fitted with special lock open feature. When lock is engaged, the line is able to run freely in both directions, with the handle closed, until normal clutch function is needed

Xts xcs graph for web 01
