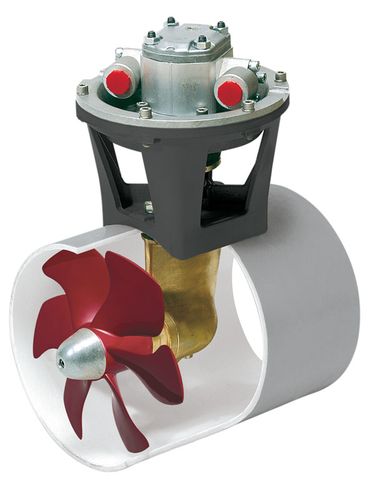

Vetus Hydraulic Thruster - 95KGF 6KW

This model of hydraulic bow thruster in the VETUS range features as standard a hydraulic motor. This hydraulic motor is driven by a hydraulic pump, if a hydraulic pump and associated tank are already installed on board, then, in most cases, this assembly can be used for driving the bow thruster too. Some marine engine manufacturers, e.g. VETUS DEUTZ, supply as standard a special PTO (Power Take Off) connection, which greatly simplifies the installation of the hydraulic pump. In addition to the pump and the hydraulic storage tank, VETUS can also supply the required load sensing and control devices, as well as the high-pressure hydraulic hoses, complete with end fittings. This hydraulic bow thruster may be fitted to a GRP, steel or aluminium tunnel or used as a stern thruster using the appropriate installation kit. The three most powerful VETUS hydraulic bow thrusters can also be powered using a specially prepared diesel power pack, instead of a pump on the main engine. In this case, the matching hydraulic pump will be supplied as part of the power pack. Installing a power pack on board can considerably reduce the required generator set capacity by operating hydraulic functions which are normally electrically powered.

The BOW95HMD hydraulic thruster may be fitted to Ø185 mm GRP, steel or aluminum tunnels or used as stern thruster. Offers virtually unlimited running time.

Code Image Product Details Stock Price Quantity Enquire
BOW95HMD
Vetus Hydraulic Thruster - 95KGF 6KW
BOW95HMD
185mm Tunnel Diameter - Thruster only - No Tunnel or Controller
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$4,758.70 Incl. GST

Thrust: 950 (95)N/KGF

Hydraulic Motor Power: 6.0KW

Hydraulic Motor Capacity: 4.2CM³/REV

Flow Rate: 24LPM

Operating Pressure: 230 BAR

Diameter A: 200MM

Length B: 276MM

Diameter C: 185MM
