Actisense NMEA 2000 to WIFI
W2K-1 NMEA 2000® to Wi-Fi Gateway NMEA 2000® to Wi-Fi Gateway

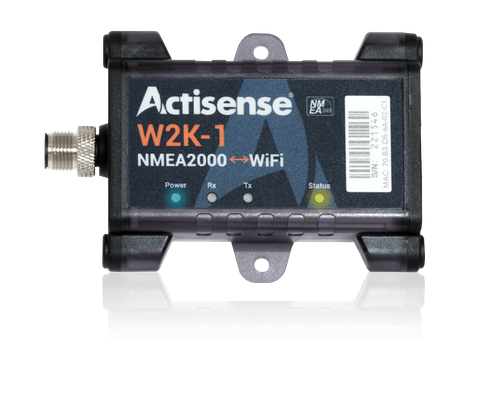

The W2K-1 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger.

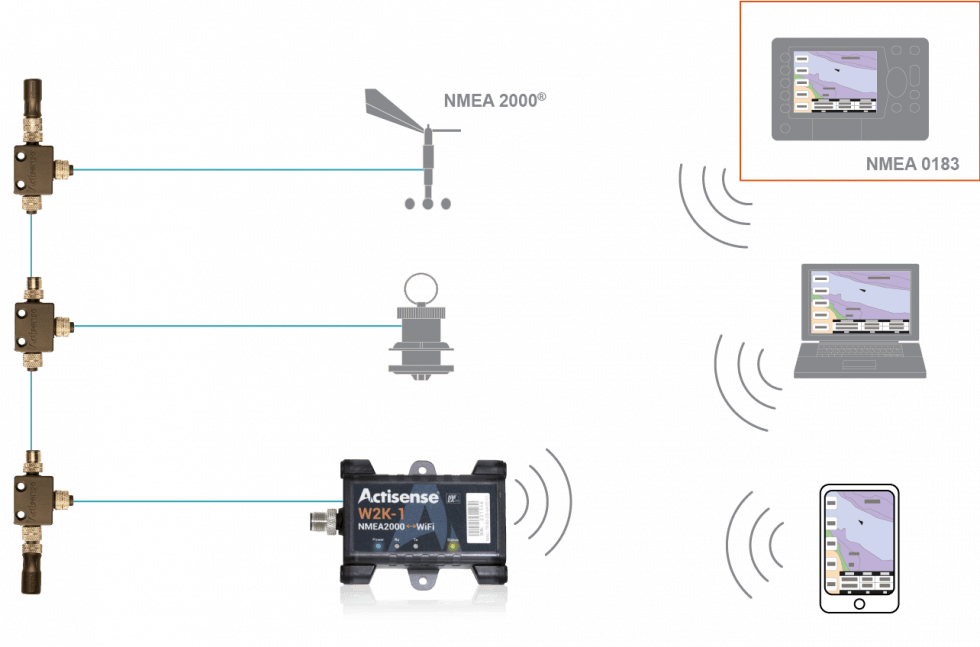

It transfers data from an NMEA 2000 backbone to any device (e.g laptop, tablet or smartphone) connected to it via Wi-Fi and additionally can convert this data to NMEA 0183 using Actisense’s renowned conversion engine.
Features:
- Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi)
- Supports both TCP and UDP, streams data using up to three separate data servers
- Data protocols are selectable to be compatible with a huge range of navigation software and apps
- Approximately 16 days of Voyage data recording (upgradable)
- Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status
- Works as an access point and client simultaneously
- Remote Firmware upgradability
- Low power- 2 LEN (100 mA)
- Supports 802.11 b/g/h (up to 150Mbps)
- Automatically measures and reports the NMEA 2000 bus voltage
- User Manual embedded on the device, easily accessible via browser
- Each device has unique default SSID and Password for enhanced security
Benefits:
- Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger
- Enables use of mobile devices and laptops without the hassle of a physical connection
- Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications
- Ruggedised IP67 casing suitable for wet and harsh environments
- Works out of the box with pre-installed industrial grade SD card
- Integrated antenna has less chance of physical damage
- Quick and easy to install
NMEA 2000 to Wi-Fi Gateway and voyage data recording in one device.
Converts NMEA 2000 to / from NMEA 0183 (streamed over Wi-Fi).
Supports both TCP and UDP and streams data using up to three separate data servers.
Data protocols are selectable to be compatible with a huge range of navigation software and Apps.
8GB high reliability Industrial micro SD card is pre-installed.
Approximately 16 days Voyage data recording.
Remote Firmware upgradability.
Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status.
IP67 rated ruggedized case.
Top end Wi-Fi allows unit to simultaneously work as an Access Point and connect to existing Wi-Fi networks in Client mode.
Low power – uses less than 2 LEN from NMEA 2000 bus.
2.4GHz radio with integrated internal antenna supporting 802.11 b/g/n (up to 150Mbps).
Automatically measures and reports the NMEA 2000 Bus Voltage.
User manual embedded on the device – accessible via browser.
Each device has unique default SSID and Password for enhanced security.
Related Products
-

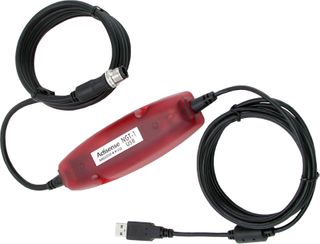

NMEA 2000 Interface Standard USBNGT-1-USBRRP:$501.06 Incl. GST
-
