Parker Hydraulic Steering Hose

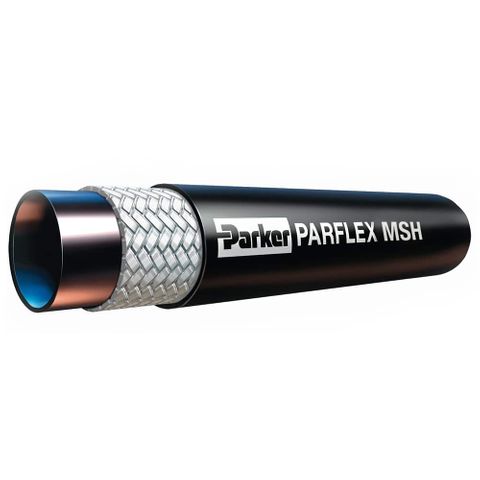

MSH hose is a thermoplastic hose for marine steering applications, specifically, outboard hydraulic steering systems where fast accurate response is needed to ensure proper control of the boat. With a corrosion resistant thermoplastic construction, this marine hose is also ideal for salt water and fresh water environments. Available in 5/16 or 3/8 ID sizes, Sold Per Meter.

Parker’s 510C is a flexible hose that offers superior abrasion resistance for general hydraulic applications with medium pressure requirements. Available in 3/8 ID sizes, Sold per Meter

Code Image Product Details Stock Price Quantity Enquire
MSH-5
Parker Hydraulic Steering Hose
MSH-5
5/16 ID 1000 PSI
Stock Level:
Available
Stock Level:
Available
$19.37 Incl. GST
Enquire
MSH-6
Parker Hydraulic Steering Hose
MSH-6
3/8 ID 1000 PSI
Stock Level:
Available
Stock Level:
Available
$39.59 Incl. GST
Enquire
510C-6
Parker Hydraulic Steering Hose
510C-6
3/8 ID 2250 PSI
Stock Level:
Available
Stock Level:
Available
$15.33 Incl. GST
Enquire
  MSH-5 MSH-6 510C-6
Hose Inside Diameter: 5/16", 8mm 3/8", 10mm 3/8", 10mm
Hose Outside Diameter: 0.48", 12mm 0.59",  15mm -
Max. Operating Pressure: 69bar, 1,000Psi, 6.9MPa 69bar, 1,000Psi, 6.9MPa 2,250 psi, 15.5 MPa
Min. Bend Radius: 2-1/4", 57mm 3", 76mm 2", 51mm
Vacuum Pressure Rating: 711.2mm-Hg, 28"-Hg 711.2mm-Hg, 28"-Hg 711.2mm-Hg, 28"-Hg
Weight: 0.07kg/m, 0.05lb/ft 0.11kg/m, 0.07lb/ft -
Min. Operating Temp: -40ºF, -40ºC -40ºF, -40ºC -40°F, -40°C
Max. Operating Temp: 200ºF, 93ºC 200ºF, 93ºC 212°F, 100°C
