Raymarine Autopilot Hydraulic Pump

Raymarine Autopilot Hydraulic Pump

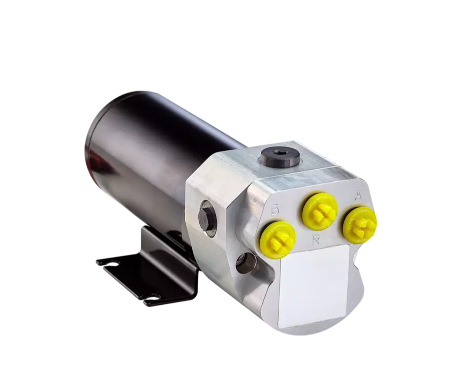

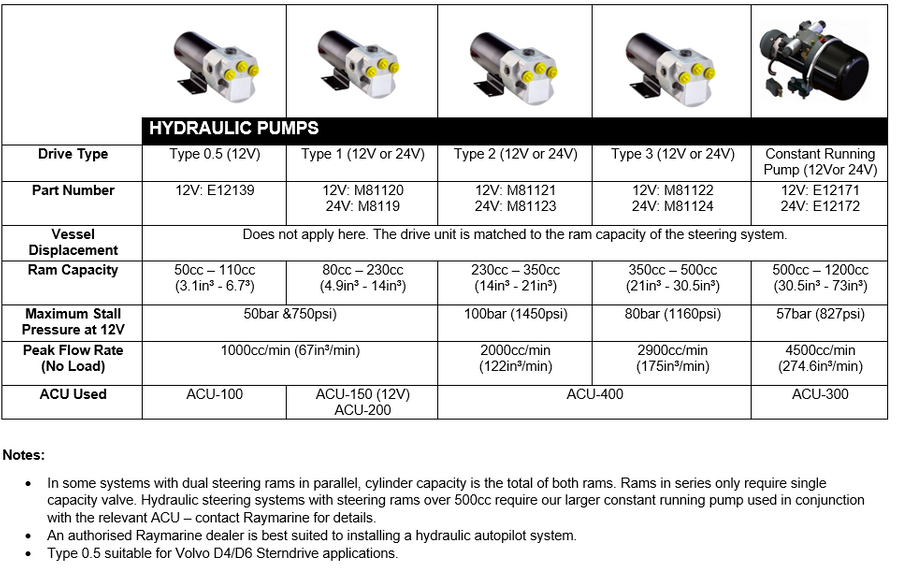

Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system. To calculate the drive unit needed, you will need the size (in cc) of the hydraulic cylinder(s) mounted to the rudder or inboard engine, or the drive unit on your outboard. Info on which drive is right for you is available in the downloads section below. Alternatively if you know the brand and model of the hydraulic cylinder, click the cross reference chart in the downloads section

Code Image Product Details Stock RRP Download
E12139
Raymarine Autopilot Hydraulic Pump
Type 0.5 Pump, 12V. to be used with ACU-100
Stock Level:
Available
$1,129.00 Incl. GST
M81120
Raymarine Autopilot Hydraulic Pump
Type 1 Pump, 12V. to be used with ACU-150 or ACU-200
Stock Level:
Available
$1,389.00 Incl. GST
M81119
Raymarine Autopilot Hydraulic Pump
Type 1 Pump, 24V. to be used with ACU-200
Stock Level:
Low Stock
$1,669.00 Incl. GST
M81121
Raymarine Autopilot Hydraulic Pump
Type 2 Pump, 12V. to be used with ACU-400
Stock Level:
Available
$1,799.00 Incl. GST
M81123
Raymarine Autopilot Hydraulic Pump
Type 2 Pump, 24V. to be used with ACU-400
Stock Level:
Low Stock
$1,849.00 Incl. GST
M81122
Raymarine Autopilot Hydraulic Pump
Type 3 Pump, 12V. to be used with ACU-400
Stock Level:
Low Stock
$2,254.00 Incl. GST
M81124
Raymarine Autopilot Hydraulic Pump
Type 3 Pump, 24V. to be used with ACU-400TYPE 3, 24V, ACU-400
Stock Level:
Low Stock
$2,315.00 Incl. GST
E12171
Raymarine Autopilot Hydraulic Pump

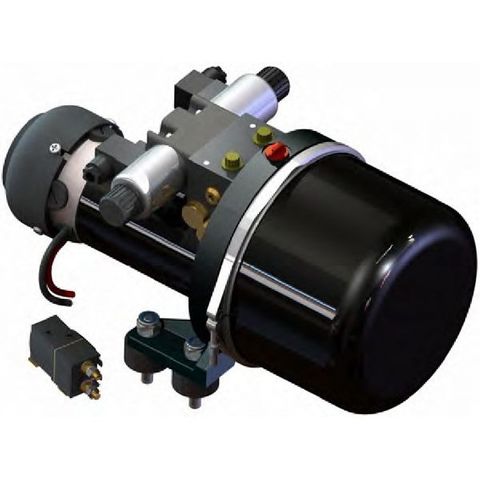

Constant Running Pump, 12V. to be used with ACU-300
Stock Level:
Low Stock
$4,989.00 Incl. GST
E12172
Raymarine Autopilot Hydraulic Pump
Constant Running Pump, 24V. to be used with ACU-300
Stock Level:
Low Stock
$4,989.00 Incl. GST
