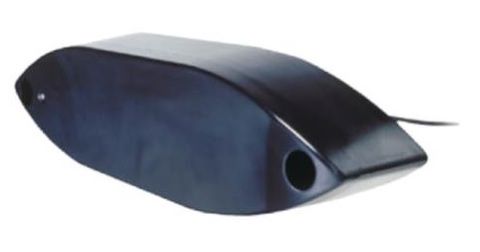

Raymarine R509 3kW CHIRP Thru-Hull Transducer with Fairing

The R509 is the go-to transducer for today’s top captains who want the maximum depth capabilities combined with the excellent target resolution of the higher frequency band.
With 25 internal ceramics and up to 117kHz of total CHIRP range the R509 offers specific frequencies excel at detecting certain species of fish

This powerhouse transducer delivers excellent resolution, bottom discrimination and bait and game fish separation at all depths.
The R509 is packed with a twenty-four element, low-frequency array that operates between 28 kHz and 60 kHz for excellent deep-water performance.

The medium frequency ceramic operates between 80 kHz to 130 kHz making this excellent for identifying targets suspended close to the bottom, on structure and within the water column.

The high frequency ceramic operates between 130 kHz and 210 kHz with a narrow (8° to 4°), perfect for pick apart structure and pinpointing tight holding fish in structure.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

Features

  • Depth and fast-response water-temperature sensor
  • 2kW power for great deep-water performance to 10,000’ (3048m)
  • Urethane transducer housing with high-performance fairing for improved high-speed performance
  • Recommended boat size: above 40' (12m)
  • Hull Type: Fiberglass, wood or metal
  • Compatible with CP470/570

Code Image Product Details Stock Price Quantity Enquire
A80210
Raymarine R509 3kW CHIRP Thru-Hull Transducer with Fairing
A80210
LOW/HIGH
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$9,799.00 Incl. GST
A80211
Raymarine R509 3kW CHIRP Thru-Hull Transducer with Fairing
A80211
LOW/MED
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$10,289.00 Incl. GST

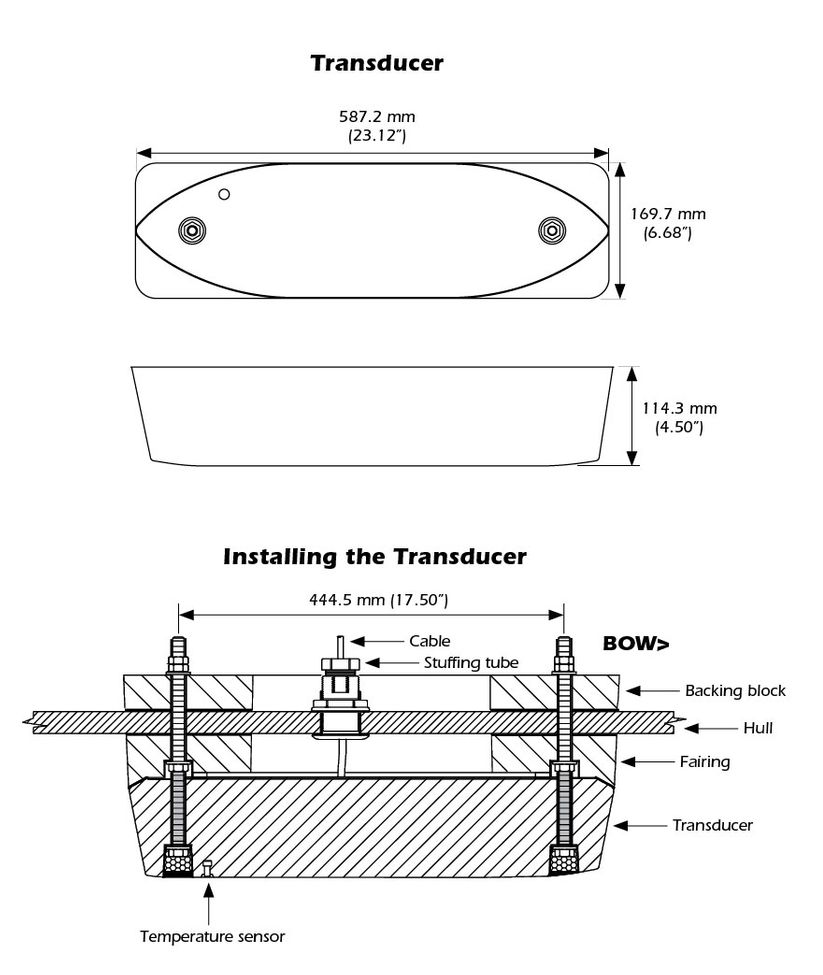

Style: Thru-Hull

Deadrise angle: 0° to 22°

Cable Length: 33' (10m)

Boat Size: 12 m (40’) and above

Monitors: Depth/temperature

Material: Urethane housing

Compatible Hull Material: Fiberglass, wood, or metal

Transmit Power: 2kW

Frequency/Beam width:

  • Low: 28-60 kHz (23°-9° beam)
  • Medium: 85-135 kHz (13°-8° beam)
  • High: 130-210 kHz (8°-4° beam)

Depth:

  • Low: 10,000'(3048m)
  • Medium: 3000'(914m)
  • High: 1500'(457m)



NOTE: Also available as in-hull (R599LM)
