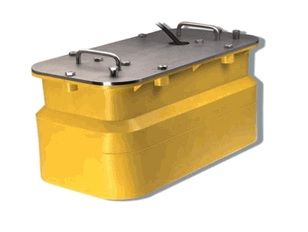

Raymarine R599 3kW CHIRP In-Hull Transducer

The R599 is the go-to transducer for today’s top captains who want the maximum depth capabilities combined with the excellent target resolution of the high frequency band.

This powerhouse, 3 kW CHIRP transducer delivers extreme target detail, bottom discrimination and bait and game fish separation. The R599 is packed with 25 internal ceramics and up to 112kHz of total CHIRP range which offers specific frequencies excel at detecting certain species of fish.

The R599 has a twenty-four, low-frequency array that operates between 28 kHz and 60 kHz for excellent deep-water performance.

The medium frequency ceramic operates between 80 kHz to 130 kHz making this excellent for identifying targets suspended close to the bottom, on structure and within the water column.

The high frequency ceramic operates between 130 kHz and 210 kHz with a narrow (8° to 4°), perfect for pick apart structure and pinpointing tight holding fish in structure.

Features

  • Depth only
  • 3kW power for great deep-water performance to 10,000’ (3048m)
  • Urethane transducer housing with plastic mounting tank for in-hull mounting
  • Recommended boat size: above 40' (12m)
  • Hull Type: Solid Fiberglass
  • Compatible with CP470/570

Code Image Product Details Stock Price Quantity Enquire
A80212

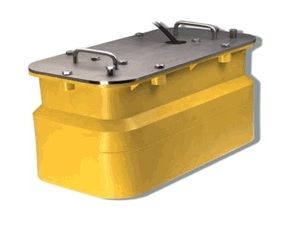

Raymarine R599 3kW CHIRP In-Hull Transducer
A80212
R599LH Low/High CHIRP, Depth Only, Molded
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$11,504.99 Incl. GST
A80213
Raymarine R599 3kW CHIRP In-Hull Transducer
A80213
R599LM Low/Medium CHIRP, Depth Only, Molded
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$11,123.00 Incl. GST

Style: In-Hull

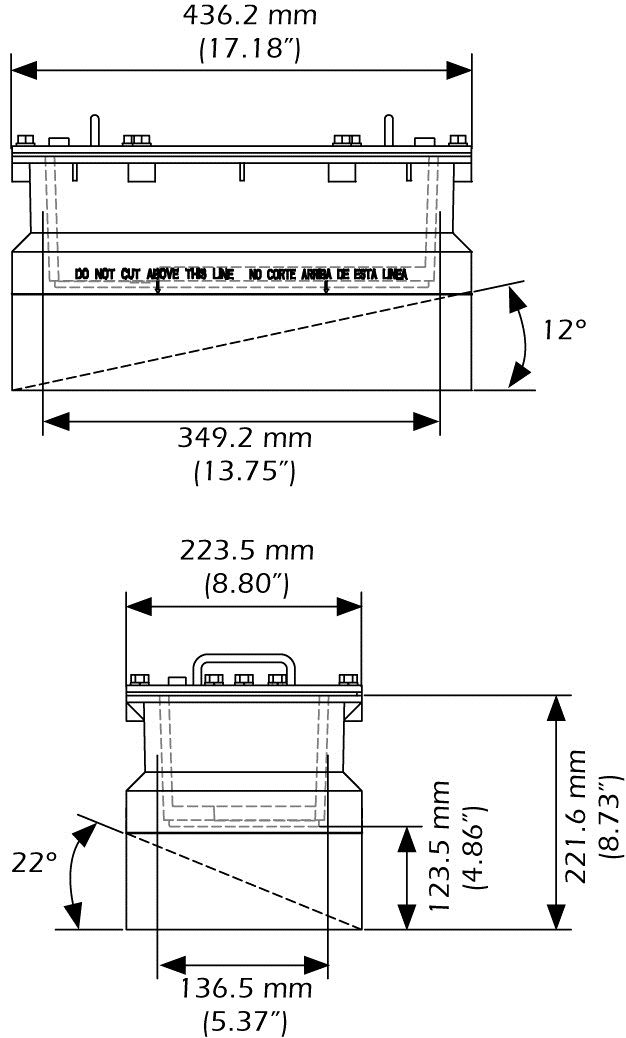

Deadrise angle: Up to 22° (short side), up to 12° (long side)

Cable Length: 33' (10m)

Boat Size: 12 m (40’) and above

Monitors: Depth

Material: Urethane housing with plastic mounting tank

Compatible Hull Material: Solid fiberglass

Transmit Power: 3kW

Frequency/Beam width:

  • Low: 28-60 kHz (11°-5° beam)
  • Medium: 85-130 kHz (13°-8° beam)
  • High: 130-210 kHz (8°-4° beam)

Depth:

  • Low: 10,000'(3048m)
  • Medium: 3000'(914m)
  • High: 1500'(457m)



NOTE: Also available as external (R509LM) mounts.
