Raymarine EV-150 Autopilot Systems

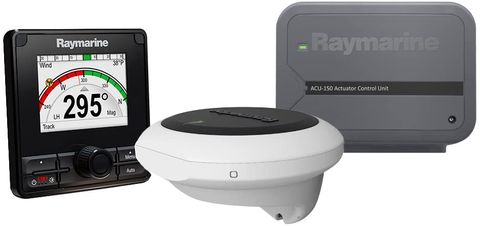

The EV-150 Power Pilot is a complete autopilot solution for powerboats with hydraulic steering. Ideal for boats with single-engine outboards or single inboard engines, the EV-150 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-150 actuator control unit.

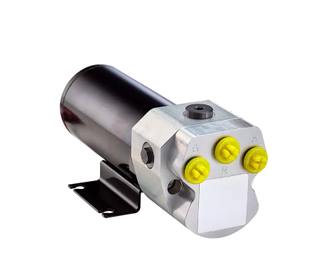

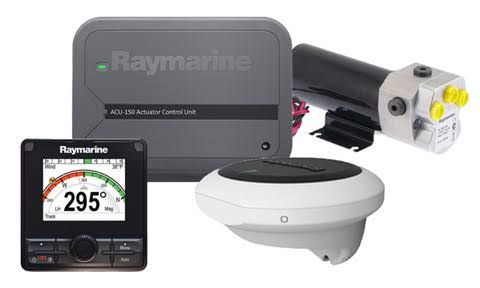

The system includes a Type 1 hydraulic autopilot pump. The pump is compatible with outboard and inboard hydraulic steering cylinder capacities between 80cc – 230cc (4.9 in3–14in3). EV-150 Power Pilot systems are available with a p70Rs autopilot control head, ACU-150 actuator control unit, EV-1 heading sensor, and a 12 Volt Type 1 hydraulic pump. Raymarine autopilot owners with an existing Type 1 hydraulic drive can upgrade to Evolution technology with Evolution Power Pilot kit without the type 1 drive included.
| Output | |
|---|---|
| Drive current output |
Maximum continuous 7 A at supply voltage |
| Physical | |
|---|---|
| Dimensions |
Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in) |
| Weight |
0.6 kg (1.32 lbs) |
| Environmental | |
|---|---|
| Relative humidity |
Max. 93% |
| Waterproof rating |
Connector panel: IPx2, Drive electronics: IPx6 |
| Storage temperature |
-30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature |
-20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
|---|---|
| Standards |
Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
|---|---|
| Power consumption (standby) |
300 mA (12 V) |
| Nominal supply voltage |
12 V dc |
| Operating voltage range |
10.8 V dc to 15.6 V dc |
| LEN (NMEA 2000 Load Equivalency Number) |
1 |
| 1 |
ACU unit |
| 2 |
Documentation |
| 3 |
Screws (pan head type) |
| 4 |
SeaTalkng spur to bare wires cable 1 m (3.3 ft) |
