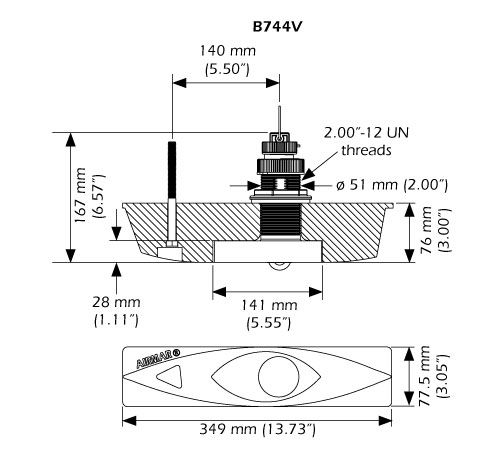

Raymarine B744V 600W Bronze Thru-hull Transducer with Fairing Block

The Raymarine B744V is a TRIDUCER® Multisensor featuring depth, speed and temperature in a single housing. The 50/200 kHz, dual-frequency, single ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744V is also available with a longer stem (B744VL) that may needed for steep-deadrise vessels or thick, cored hulls.

Features

Depth, speed, and temperature in one housing
600 W
Dual-frequency elements:
- 50 kHz with a wide 45° beam for performance to 1200' (353m)
- 200 kHz with a 12° beam for performance to 700 (206 m)
Includes a high-performance fairing for improved bottom tracking at higher speeds
Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
Recommended boat size: Up to 30' (9m)

Owner's Guide & Installation Instruction

High-Performance Fairing

Paddlewheel & Valve Kit

Airmar EMEA Brochure

Theory of Operation 2014

Style: Thru-Hull

Cable Length: 33' (10m)

Monitors: Depth/speed/temperature

Material: Bronze housing, Urethane acoustic window

Compatible Hull Material: Fibreglass & Wood

Transmit Power: 600W

Frequency: 50/200kHz

Depth:

50kHz: 1,200'
200kHz: 700'

Beam width:

50kHz: 45°
200kHz: 12°

NOTE: Self-sealing removable paddle wheel insert. Comes with a high speed fairing block. The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls.
