Raymarine EV-200 Autopilot Systems

Raymarine EV-200 Autopilot Systems

Race, Cruise or Fish – Raymarine EV-200 Autopilot Systems will take command.

The culmination of Raymarine’s' autopilot expertise and advanced aerospace guidance technology, Evolution Ai™ control algorithms deliver a new level of accurate autopilot control. At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

The EV-200 system consists of an EV-1 Sensor, ACU-200 Autopilot Control Unit, Drive Unit, Control Head, Rudder reference sensor and an Evolution autopilot cabling kit suitable for vessels with any Type 1 drive unit (Hydraulic, Linear, Mechanical Rotary).

EV-200 Sail: Designed for mid-sized sailboats with mechanical steering, the option of mechanical linear or mechanical rotary drive types this system is suitable for vessels with a max displacement of 11,000 KG

EV-200 Power: Perfect for both 12/24v DC vessels with hydraulic steering with a steering ram capacity between 4.9 cu. in.(80cc) and 14.0 cu in (230cc).

Key Features:

  • Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
  • Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
  • Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
  • Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

Code Image Product Details Stock RRP Download
.T70155S
Raymarine EV-200 Autopilot Systems

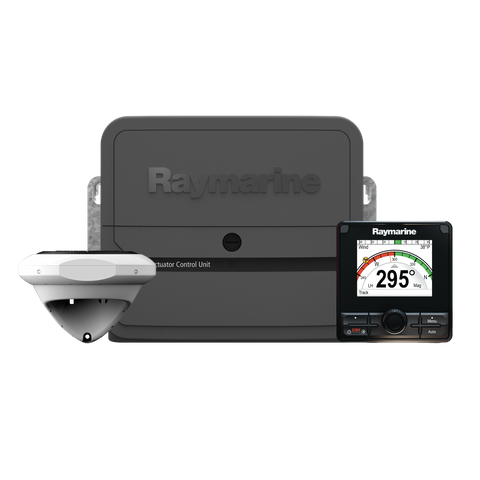

EV-200 - Sail Pilot with P70S & ACU-200, No Drive Unit
Stock Level:
Available
$3,889.00 Incl. GST
.T70156S
Raymarine EV-200 Autopilot Systems
EV-200 - Power Pilot with P70S & ACU-200, No Drive Unit
Stock Level:
Available
$3,889.00 Incl. GST
.T70157S
Raymarine EV-200 Autopilot Systems

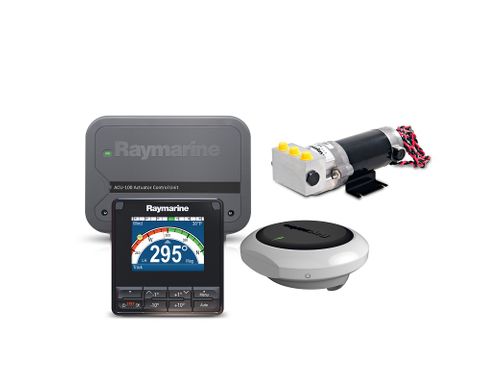

EV-200 - Hydraulic Pilot with P70S, ACU-200 & Type 1 Hydraulic Pump
Stock Level:
Available
$4,869.00 Incl. GST
.T70158S
Raymarine EV-200 Autopilot Systems

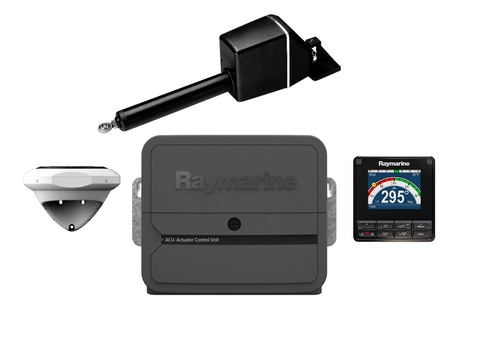

EV-200 - Linear Pilot with P70S, ACU-200 & Type 1 Mechanical Linear Drive
Stock Level:
Available
$5,589.00 Incl. GST
