Spinlock XTX Clutch, Suits 8-12mm Lines

HTML Editor - Full Version

Spinlock XTX Rope Clutch with optimised SOFTGRIP braid technology.

Drawing on experience in both mechanical and textile product design the XTX Soft Grip Clutch uses a combination of new materials to offer mid load rope holding in a lightweight, compact device. Using an innovative braided ‘soft grip’ technology to engage and hold a loaded line, the XTX benefits from being very ‘kind’ to the rope cover with a controlled and easy release.

Ultra-lightweight mid-load rope holding.  Gentle on rope covers increases the lifecycle of your ropes.  Neat, retracting toggle for fingertip control of clutching power.  Push button clutch activation with lock-open indicator.  Fully enclosed body protects against accidental release.  Small footprint and very low profile with no handle rotation space required.  Simple, versatile installation, 2 fasteners for deck, bulkhead, rig or tunnel mounting.  Remote release capability.  Easy set up – no performance tuning required.

NOTE: Correct rope diameter is critical for the correct operation of these clutches. NZ rope manufacturers rope tend to be generous with their diameters compared to European and American manufactured lines that tend to be spot on. NZ manufactured rope generally require going up a size. An example is Fineline 10mm braid generally requires 11mm XTX clutches.

Code Image Product Details Stock Price Quantity Enquire
XTX08-A
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX08-A

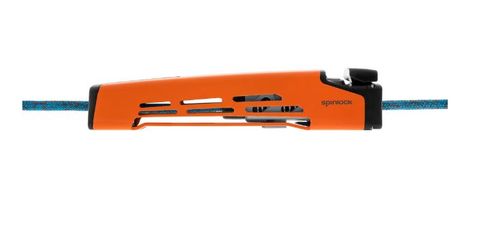

Line Ø 8mm, Amber, MWL up to 800kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX08-B
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX08-B

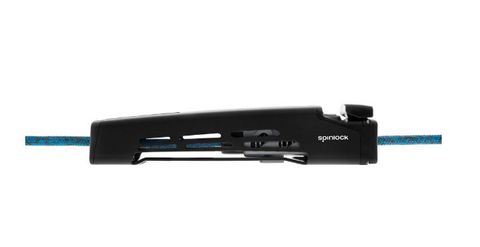

Line Ø 8mm, Black, MWL up to 800kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX08-L
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX08-L

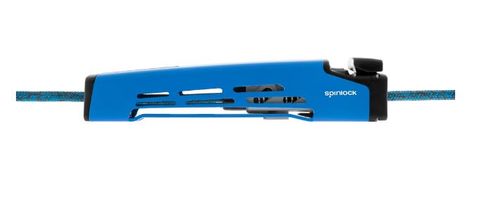

Line Ø 8mm, Blue, MWL up to 800kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX08-W
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX08-W

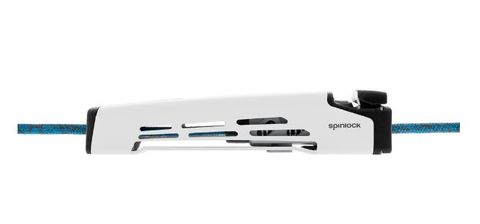

Line Ø 8mm, White, MWL up to 800kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX08-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX08-Y

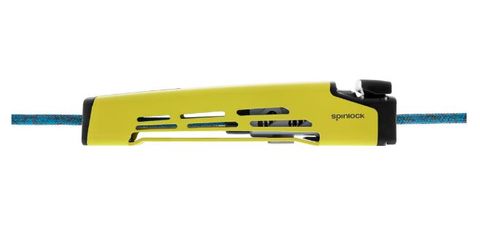

Line Ø 8mm, Yellow, MWL up to 800kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX10-A
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX10-A
Line Ø 10mm, Amber, MWL up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX10-B
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX10-B
Line Ø 10mm, Black, MWL up to 1000kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX10-L
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX10-L
Line Ø 10mm, Blue, MWL up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX10-W
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX10-W
Line Ø 10mm, White, MWL up to 1000kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX10-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX10-Y
Line Ø 10mm, Yellow, MWL up to 1000kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX12-A
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX12-A
Line Ø 12mm, Amber, MWL up to 1200kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX12-B
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX12-B
Line Ø 12mm, Black, MWL up to 1200kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX12-L
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX12-L
Line Ø 12mm, Blue, MWL up to 1200kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX12-W
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX12-W
Line Ø 12mm, White, MWL up to 1200kg
Stock Level:
Available
Stock Level:
Available
$443.00 Incl. GST
XTX12-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX12-Y
Line Ø 12mm, Yellow, MWL up to 1200kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX09-A
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX09-A
Line Ø 9mm, Amber, MWL up to 900kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX09-B
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX09-B
Line Ø 9mm, Black, MWL up to 900kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX09-L
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX09-L
Line Ø 9mm, Blue, MWL up to 900kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX09-W
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX09-W
Line Ø 9mm, White, MWL up to 900kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX09-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX09-Y
Line Ø 9mm, Yellow, MWL up to 900kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX11-A
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX11-A
Line Ø 11mm, Amber, MWL up to 1100kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX11-B
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX11-B
Line Ø 11mm, Black, MWL up to 1100kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX11-L
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX11-L
Line Ø 11mm, Blue, MWL up to 1100kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX11-W
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX11-W
Line Ø 11mm, White, MWL up to 1100kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST
XTX11-Y
Spinlock XTX Clutch, Suits 8-12mm Lines
XTX11-Y
Line Ø 11mm, Yellow, MWL up to 1100kg
Stock Level:
Low Stock
Stock Level:
Low Stock
$443.00 Incl. GST

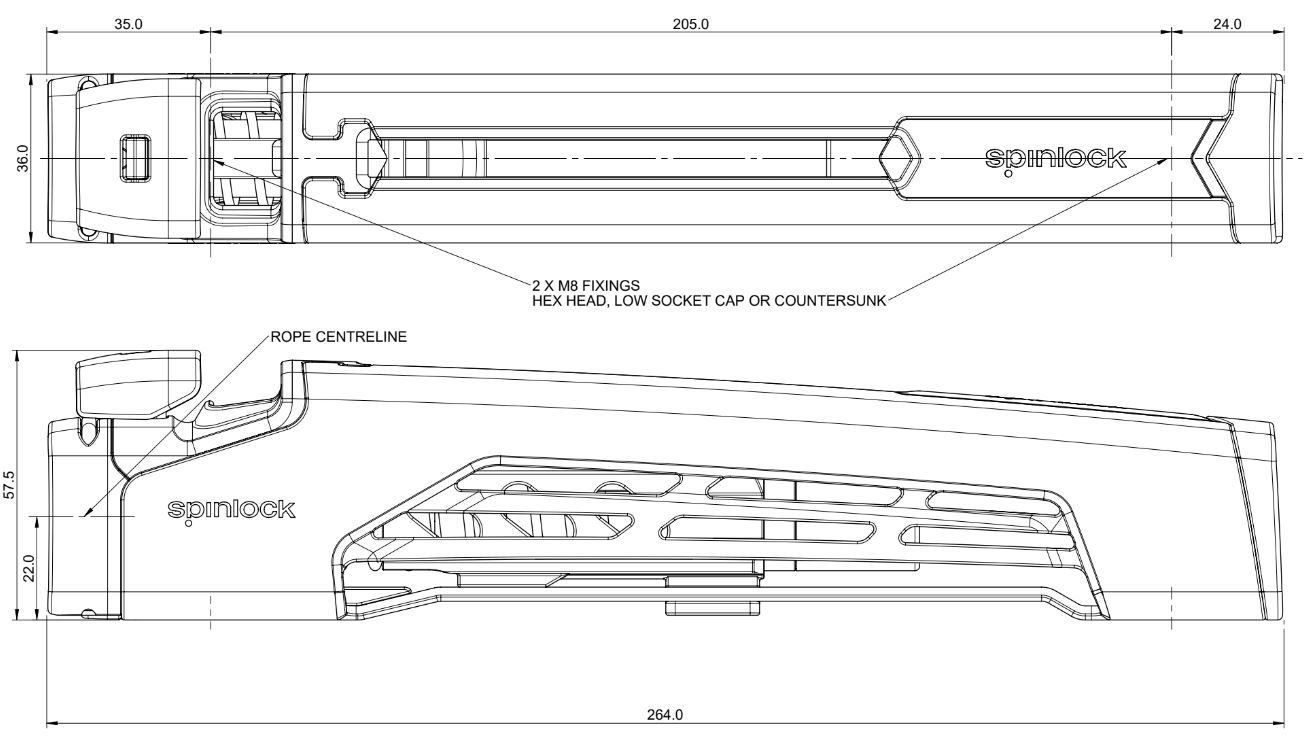

Model Measured Diameter MWL Weight
XTX08 8mm 800kg (1760 lb) 360g
XTX09 9mm 900kg (1980 lb) 360g
XTX10 10mm 1000kg (2200 lb) 365g
XTX11 11mm 1100kg (2420 lb) 365g
XTX12 12mm  1200kg (2640 lb) 375g
