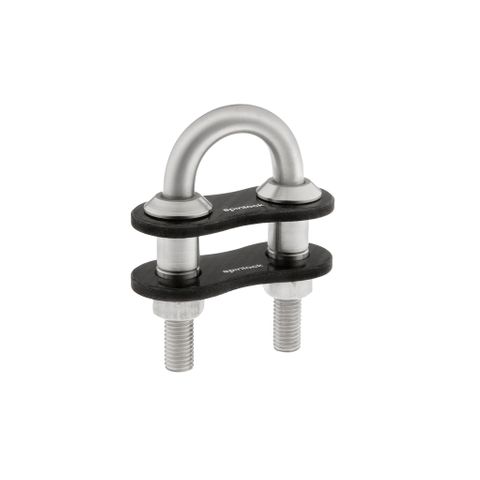

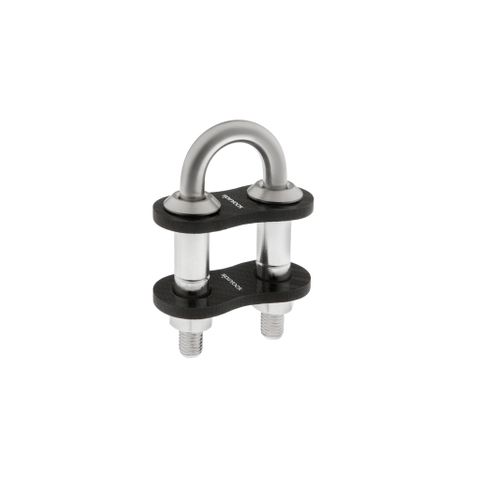

Spinlock Padeye
Spinlock high strength, low weight carbon PD Pad Eyes deck plates.
High quality 17-4PH stainless steel. Excellent strength to weight ratio. Increased through laminate bearing surfaces to minimise tearing. Significantly reduced weight to previous pad eye range. No dissimilar material issues. Improved shock loading resistance. Compact foot print and the ability to ‘nest’ together. Easily sealed.
| Model | SWL Vertical (kg) | SWL 45 (kg) | SWL Horizontal (kg) |
| PD-6C | 2150 | 1290 | 1290 |
| PD-8C | 4000 | 2400 | 2400 |
| PD-10C | 7600 | 5250 | 5250 |
| PD-12C | 9750 | 6750 | 6750 |
