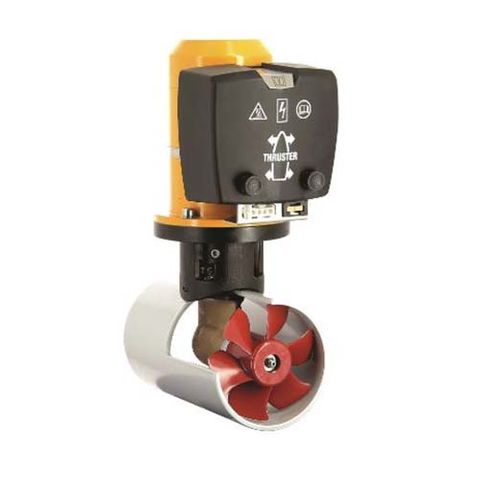

Vetus Stern Thruster Kit 35KGF 125mm Tunnel

HTML Editor - Full Version

Featuring all the updates of its larger brother, the BOW3512F is suitable for a 125 mm diameter tunnel. This means the powerful BOW3512F can be installed in even smaller boats.

The flexible rubber coupling eliminates motor vibrations and the new motor is more energy efficient. To accommodate the flexible coupling, the flange height will increase by 30 mm. Apertures in the flange enable easy checking of the coupling. Last but not least, the flange face will change from triangular to round, allowing the motor to be rotated in steps of 90° as opposed to the current steps of 120°, and creating uniformity in the entire DC bow thruster range.

Flexible coupling between tailpiece and motor eliminates vibrations.  Single propeller creates less flow disturbance in the tunnel.  Vetus unique propeller blade design minimises cavitation noise.  Strong synthetic propeller is resistant to corrosion and reduces weight. Spiral gears minimise transmission noise.

Meets EMC requirements.

Code Image Product Details Stock Price Quantity Enquire
.BOW35F 12JS
Vetus Stern Thruster Kit 35KGF 125mm Tunnel
.BOW35F 12JS
12V Thruster, Joystick Control
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$2,654.00 Incl. GST
.BOW35F 12TS
Vetus Stern Thruster Kit 35KGF 125mm Tunnel
.BOW35F 12TS
12V Thruster, Touchpad Control
Stock Level:
Please Enquire
Stock Level:
Please Enquire
$2,544.00 Incl. GST

Proportional: No

Thrust: 35 N/KGF

Power: 1.5KW

Internal Tunnel Diameter: 125MM

Weight: 12KG

Voltage: 12V

Current Consumption: 200A

Continuous Operating Time: 4 MIN

Ignition Protected: No

Retractable: No

Extended Runtime: No
