BANTEN AIS/VHF/FM TRANSCEIVER SPLITTER
This Antenna Splitter is intended to be used with any Class B or B+ AIS Receiver/Transmitter to enable your existing boat VHF antenna to be used for receiving and transmitting AIS data.

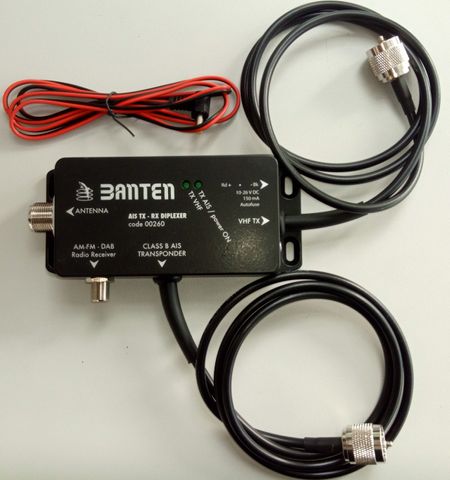

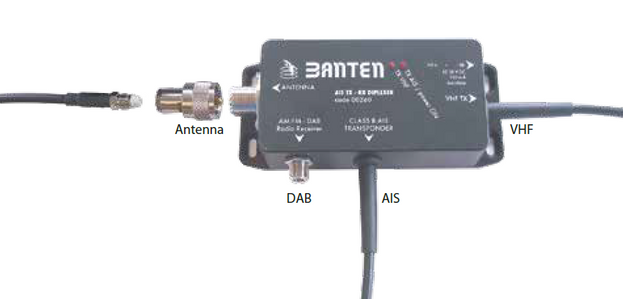

Installation is quick and simple with supplied interconnecting cables to link the AIS Receiver, or Transceiver, and the boat VHF. Reception on the AIS Receiver and the VHF Radio happens simultaneously. AIS reception is blocked when the VHF Radio is transmitting.
- Simple and quick to install, reducing installation time and cost.
- FM connection to connect to your stereo radio system.
- Fail safe operation ensures the VHF radio is connected to the antenna in the event of a power loss.
- Operation from 12 or 24 VDC with built-in fuse.
MECHANICAL FEATURES
| Box material | Aluminium |
| Weight | 0,4000 kg |
| Size | 140 x 63 x 30 mm |
| Finishing | Poliurethane Paint |
| Colour | Black |
| Mount | at panel with screw |
ELECTRICAL FEATURES
| AIS Channel | TX and RX |
| VHF Channel | TX and RX |
| Max power | 30 W continuos |
| Power Supplies | 10-30 V |
| Power conpsunction | 100 mA |
| Protection | Automatic fuse inside |
Related Products
-

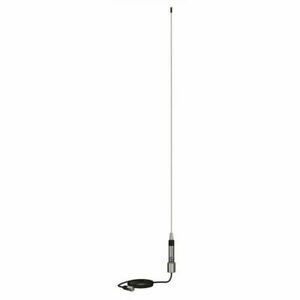

0.9m (3ft) “Skinny Mini” Classic VHF Antenna, Includes 4.5m (15ft) Cable5250SHKRRP:$219.90 Incl. GST
-

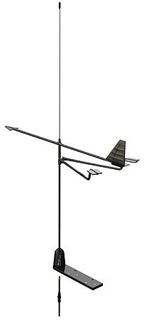

0.9m (3ft) V-Tronix VHF Antenna with Integrated Wind Indicator, Includes Flat Bracket for Masthead Mounting and 20m (65ft) Cable5445RRP:$307.50 Incl. GST
-
