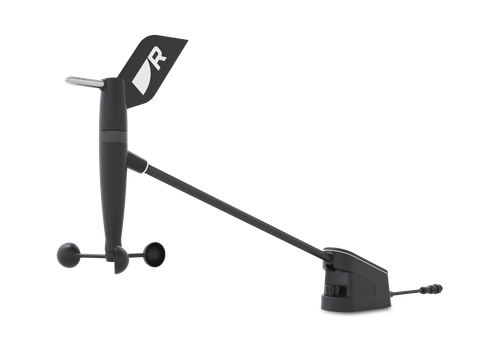

RSW Wired, Smart Win Transducer
PHYSICAL
Length: Wind transducer (including cable - 657.762 mm
| Length | Wind transducer (including cable) 657.762 mm |
| Wind transducer (excluding cable) 540.712 mm | |
| Wired gateway: 155.61mm | |
| Width | Wind transducer: 46.96 mm |
| Wired gateway: 47.38 mm | |
| Height | Wind transducer: 305.86mm |
| Wired gateway: 30.61 mm |
POWER
Nominal supply voltage - 12 V dc (Via SeaTalk NG)
Operating voltage range - 9V to 16V dc
Power Consumption - < 100 mW
Fuse rating - Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating - 1
ENVIRONMENTAL
| Operating temperature range |
-25°C to +55°C (-13°F to +131°F) |
| Storage temperature range |
-30°C to +70°C (-22°F to +158°F) |
| Relative humidity |
Masthead: 100% Below deck: up to 93% @ 40°C |
| Waterproof rating |
Wind transducer: IPx6/IPx7 Wired gateway: IPx3 |
| Wind |
115 mph (185 kph) |
| Vibration |
EN 60945:2002 (exposed) |
CONFORMANCE
Europe, Australia & New Zealand - EN 60945:2002
Product Marking - UKCA, CE, Australian Tick, WEEE Directive, Industry Canada

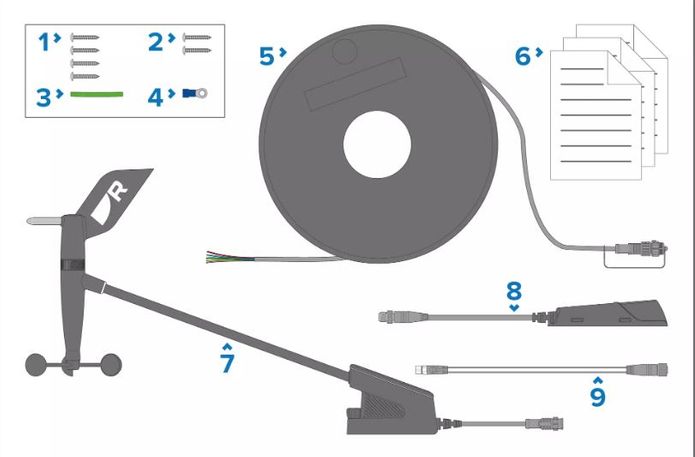

WHATS IN THE BOX?
The following parts are supplied with the RSW-Wired:
1. No. 10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
2. No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
3. 40 mm heat shrink tube (required to insulate ground wire when shortening the mast cable)
4. Ring crimp terminal (required for additional ground connection when the gateway is not mounted ona metal surface)
5. Mast cable, 30 m reel.
6. Documentation
7. Win Transducer
8. Smart wind wired gateway
9. SeaTalk NG to DeviceNet adaptor cable, 120mm
