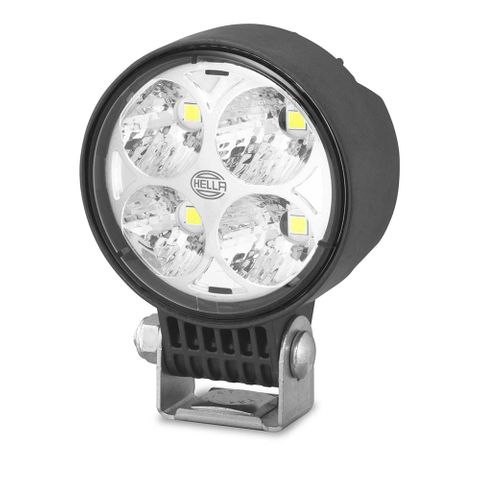

Hella Marine Module 70 LED Work Lamps

Hella Marine Module 70 LED Work Lamps

The Module 70‑S is a high output (1,850 lumen), cost effective replacement for halogen lighting on your vessel, delivering higher efficiency, and longer lifetime in a compact package.

The Module 70-S uses efficient cooling fins and temperature controlled automatic dimming, to ensure maximum light output in any environment without overheating. The housings are a corrosion resistant, heat dissipating thermal polymer, with a high impact resistant plastic cover lens. Module 70‑S are suitable for upright or pendant mounting, via a robust Stainless Steel bracket.

The Module 70‑S is dust- and waterproof, protected against polarity reversal, and has approval for transport of hazardous goods. The ECE-approved lamps meet the highest EMC requirements. Like all Hella marine products, the Module 70 Gen 5 comes with a 5-year guarantee, providing long-term peace of mind.

  • Longer service life vs Halogen
  • High efficiency vs Halogen
  • Corrosion resistant thermal polymer housing

The Module 70-S offers 2 lighting patterns for different applications:

Close Range: Ideal for illuminating nearby areas, such as working decks or to illuminate docks to facilitate loading. Fitting 2 lamps to cross beams is always a great idea to avoid shadows.

Long Range: This pattern narrows and extends the beam, delivering headlight-like performance for distance viewing; also very useful where the lights need to be mounted at height (Masts etc.), or a long distance away from the area to be lit (Power supply limitation).



1G0 996 776-441 Module 70‑S Long Range

1G0 996 776-431 Module 70‑S Close Range

Code Image Product Details Stock Price Quantity Enquire
1G0 996 776-431
Hella Marine Module 70 LED Work Lamps
1G0 996 776-431
LED Work Lamp - Close Range 12/24V
Stock Level:
Low Stock
Stock Level:
Low Stock
$214.50 Incl. GST
Enquire
1G0 996 776-441
Hella Marine Module 70 LED Work Lamps
1G0 996 776-441
LED Work Lamp - Long Range 12/24V
Stock Level:
Low Stock
Stock Level:
Low Stock
$214.50 Incl. GST
Enquire

Mounting

Upright and pendant

Materials

Housing: Advanced Thermal Polymer
Cover lens: Plastic
Bracket: Stainless Steel

Operating Voltage

Multi-voltage 9-32V DC (12/24V DC Nominal)

Power Consumption

17W (1.29A@12V DC / 0.61A@24V DC)

Light Output

1850 lumens

Colour Temperature

6500K

Degree of Protection

Polarity reversal protection, overvoltage protection
IP 6K7, IP 6K9K (Completely sealed):
Suitable for submersion in operation and high pressure water jet cleaning

Connection

DEUTSCH DT connector, 2-pin.
Note: Module 70‑S requires 8KB 990 299- 011 cable with DT Connector or equivalent. Not included with delivery.

Compliance

ECE-R10, ADR/GGVSEB, RCM,
CISPR 25 Class 5 (12V) and Class 4 (24V)
