16 Channel DC Load Controller Module

16 Channel DC Load Controller Module

HTML Editor - Full Version

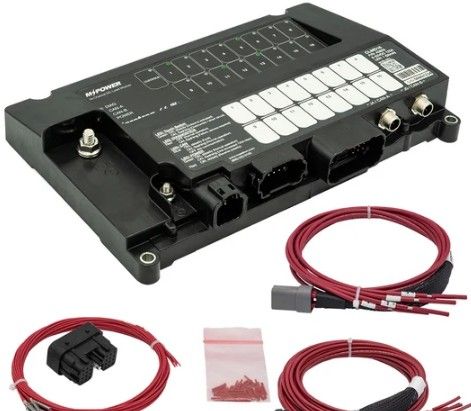

For larger loads and more circuits, the CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps and twelve breakers handle a maximum of 12 amps with a total current capacity of 125 amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two 12A H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc. There are 2 resistive inputs and 1 current loop input that can be used for various applications including tank level monitoring.

The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report over current faults and undercurrent conditions.

Code Image Product Details Stock Price Quantity Enquire
0413-204-2005
16 Channel DC Load Controller Module
0413-204-2005
J3 Connector Seal Plug, 20 HD SER, Deutsch
Stock Level:
In Stock
Stock Level:
In Stock
POA
Enquire
0462-201-20141
16 Channel DC Load Controller Module
0462-201-20141
J3 (I/O Gen Purpose) 16-20AWG Socket, Deutsch
Stock Level:
In Stock
Stock Level:
In Stock
POA
Enquire
0462-203-12141
16 Channel DC Load Controller Module
0462-203-12141
J1 Output 14AWG Socket, Deutsch
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$2.47 Incl. GST
Enquire
A3708
16 Channel DC Load Controller Module
A3708
Output J2 Mating Connector with 1m Flying Leads
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$142.61 Incl. GST
Enquire
A3709
16 Channel DC Load Controller Module
A3709
Output J1 Mating Connector with 1m Flying Leads
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$94.78 Incl. GST
Enquire
A3710
16 Channel DC Load Controller Module
A3710
J3 (I/O Gen Purpose) Harness Kit
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$214.78 Incl. GST
Enquire
CLMD16
16 Channel DC Load Controller Module
CLMD16
16 Channel DC Load Controller Module
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$3,297.39 Incl. GST
Enquire
CLMD16-R
16 Channel DC Load Controller Module
CLMD16-R
16 Channel DC Load Controller Module with A3708, A3709 & A3710
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$3,525.22 Incl. GST
Enquire
