12 Channel Bypass Module

12 Channel Bypass Module

HTML Editor - Full Version

Installing the 12-Channel DC Load Controller Module (CLMD12) provides owners/operators with the ability to manually control individual loads locally with a simple flip of the switch.

The CBMD12 utilises standard fuses for overcurrent protection and 12 Curvette rocker switches for manual control of each load. One of the most popular styles used in general electrical applications, Curvette Rocker Switches are designed for extreme environments, corrosion, temperature, vibration, shock, and more.  Extremely robust, Curvette switches are designed to last a minimum of 100,000 actuation cycles. This is a more reliable, safer and simpler process than physically moving a fuse while manually overriding a circuit.

It is important to ensure that the current rating of the fuse for each load is appropriate to protect the load and the wiring for that load. Note that the Bypass Module does not support paralleled outputs since each circuit is controlled by a separate switch.  Additionally the Bypass Module does not support diming of circuits.

Code Image Product Details Stock Price Quantity Enquire
A3720
12 Channel Bypass Module
A3720
Bypass Module Jumper Wire with Lugs, 6AWG, Red
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$34.78 Incl. GST
Enquire
CBMD12
12 Channel Bypass Module
CBMD12
12 Channel Bypass Module
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$418.26 Incl. GST
Enquire
CBMD12-R
12 Channel Bypass Module
CBMD12-R

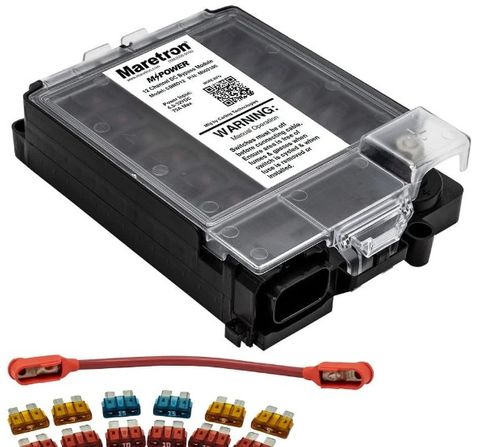

12 Channel Bypass Module with Fuse Pack/Jumper Wire
Stock Level:
Pre-Order, Stock Incoming
Stock Level:
Pre-Order, Stock Incoming
$430.43 Incl. GST
Enquire
